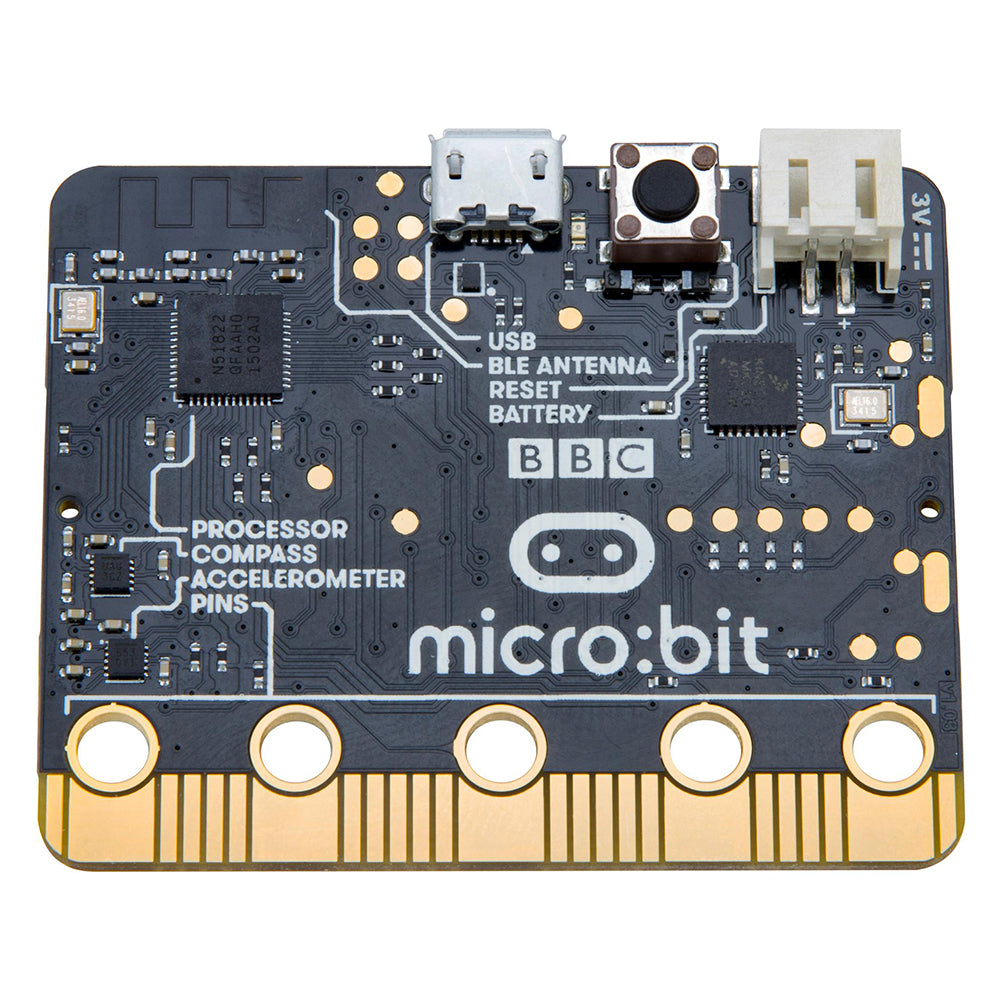

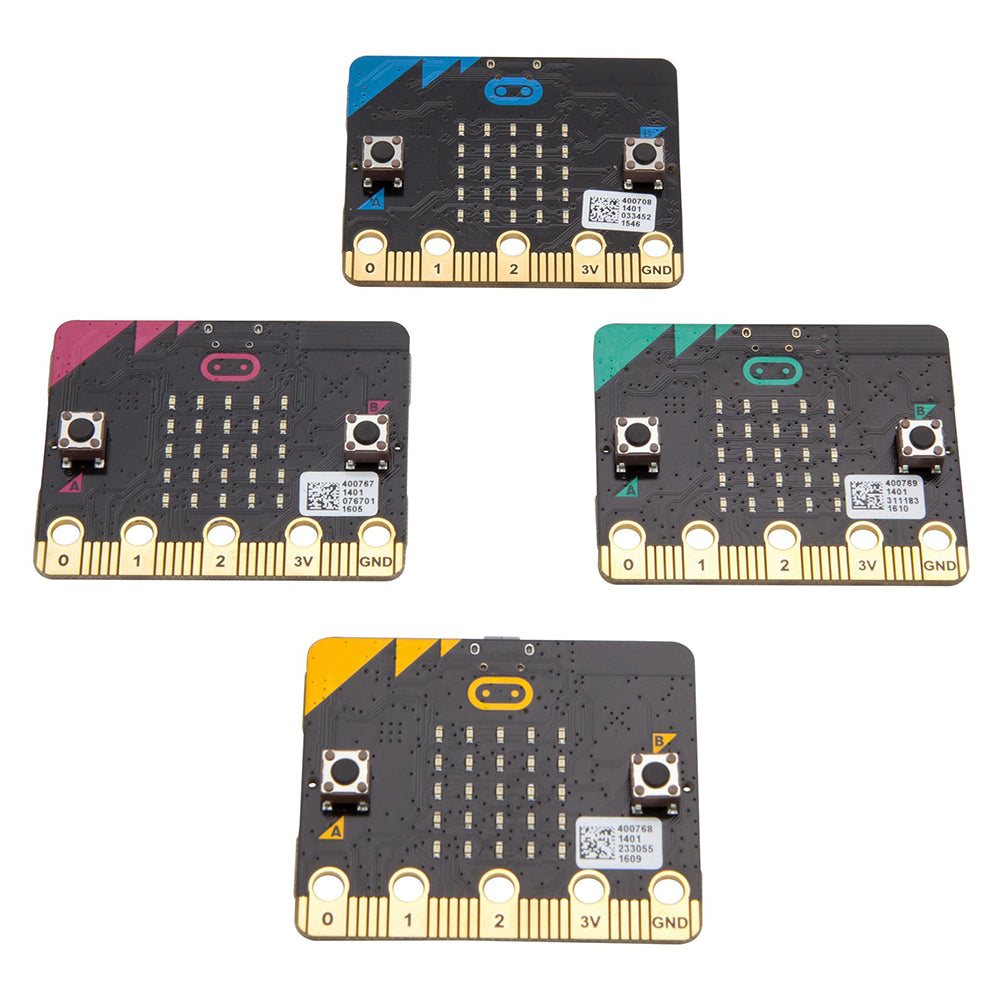

BBC MICRO-BIT SBC - BOARD ONLY

Containing 1x micro:bit and a Quick Start Guide in a single retail pack, this is the ideal option for makers to get started creating BBC micro:bit projects and inventing solutions (requires a USB cable for programming purposes, and a battery holder & 2x AAA batteries to power your BBC micro:bit if not connected to your computer – sold separately). The micro:bit is a pocket-sized computer that you can code, customise and control to bring your digital ideas, games and apps to life. Measuring 4cm by 5cm, and designed to be fun and easy to use, users can create anything from games and animations to scrolling stories at school, at home and on the go – all you need is imagination and creativity. The micro:bit is completely programmable. That means each of its LEDs can be individually programmed as can its buttons, inputs and outputs, accelerometer, magnetometer and Bluetooth Smart Technology. The micro:bit has a website full of coding languages, lesson plans, tutorials, and fun ideas.

• Size: approx. 5cm x 4cm
• Weight: 8g
• Microprocessor: 32-bit ARM® Cortex™ M0 CPU
• A 5×5 LED matrix with 25 red LEDs to light up and can display animiated patterns, scrolling text and alphanumeric characters
• Two programmable buttons. Use them as a games controller, or control music on a smart phone
• On-board motion detector or 3-AXIS digital accelerometer that can detect movement e.g. shake, tilt or free-fall and use it to control motion activated games
• A built-in compass, 3D magnetometer to sense which direction you’re facing and your movement in degrees and detect the presence of certain metals and magnets
• Bluetooth Smart Technology. Connect the micro:bit to other micro:bits, devices, phones, tablets, cameras and other everday objects
• Five Ring Input and Output (I/O) including power (PWR), ground (GND) and 3 x I/O. The micro:bit can read values from sensors and control things like motors or robots
• 20 pin edge connector: This allows the micro:bit to be connected to other devices such as Raspberry Pi, Arduino, Galileo and Kano through a standard connector
• Micro-USB controller: This is controlled by a separate processor and presents the micro:bit to a computer as a memory stick
• System LED x 1 yellow
• System push button switch x 1
